Multi-Line Wall Washer

1 - 3

<

>

Product Name

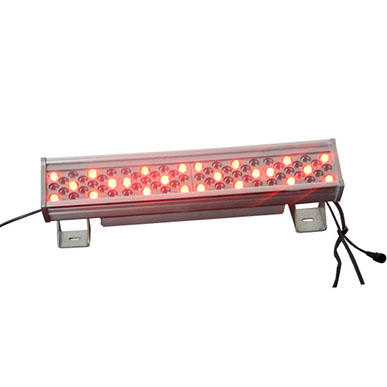

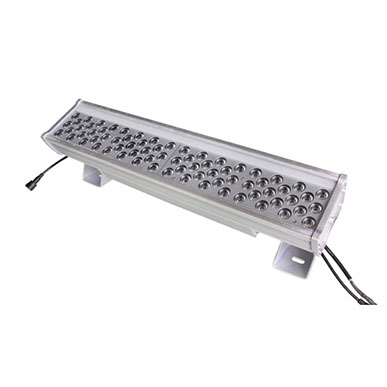

New Super LED wall washer(single color and RGB)

Item No.

Product Introduction

1. Built-in 1W high power LED as light source, single color and RGB

type, can emit excellent light effects and magnificent colors.

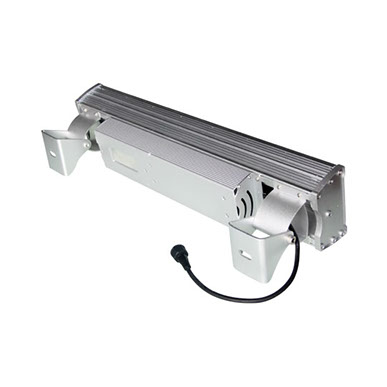

2. This new type Wall washer made up of two parts, first part is light body and the other one includes power supply and controller box, which makes this wall washer different with other wall washers.

3. It has lighter weight, safe and stable quality and it is easy for maintenance. The unique isolated module design makes better waterproof, longer lifespan, and better heat dissipation, easier control.

4. Hand in hand connection among lights, signals, power supply, makes easier installation, more conveniently connection..

5, There are 14 kinds of build-in programs which can be operated at the DMX window. This wall washer can also be controlled by outside DMX 512 controller or super DMX Console to achieve more different lighting effects. It can achieve whole or isolated light effect control.

Technical Parameter:

Working temperature:

Connection Ports

RGB Wall Washer

Light Body part:

1) One pc 24V DC power supply input terminal: 2-pin male waterproof connector(connect with the 2-pin female connector of power supply)

2) One pc standard DMX signal input terminal: 3-pin male connector(connect with the 3-pin female connector of controller part)

Power supply and controller parts:

1) One pc high voltage input terminal: 3-pin bare wire

2) One pc 24V DC power supply output terminal: 2-pin waterproof female connector

3) One pc standard DMX signal input terminal: 3-pin male waterproof connector(light signal input use)

4) One pc standard DMX signal output terminal: 3-pin female waterproof connector (connect with next light)

5) One pc standard DMX signal output terminal: 3-pin female waterproof connector ( connected with the three-pin male connector of light body ,signal output to light body )

Connection Ports

Single Color Wall Washer

Light Body part:

1) One pc 24VDC power supply input terminal: 2-pin male waterproof connector(connect with the 2-pin female connector of power supply)

Power supply and controller parts:

1) One pc high voltage input terminal: 3-pin bare wire

2) One pc 24VDC power supply output terminal: 2-pin waterproof female connector

Standard length of connection wire: (wire of controller an power supply):

Single Color wall washer luminous intensity diagram:

0.6m

Single Color wall washer luminous intensity diagram:

0.9m

Single Color wall washer luminous intensity diagram:

1.2m

Dimension Diagram:

1. "L1" stands for the whole length of wall washer

0.6 m wall washer:L1=614mm, 0.9 m wall washer :L1=914mm, 1.2m wall washer :L1=1214mm

2. 'L2" stands for the length between the middle of two location brackets

0.6 m wall washer:L1=512 mm, 0.9 m wall washer灯:L1=682 mm, 1.2m wall washer:L1=962mm

Diagram for installation and connection

1. single color wall washer, can be lighted up with power on

2. The connection way of RGB colors, as follows:

Attention:

1. Please consider about "the working condition", the lamp can not be put in water for long time

2. Each 0.6m RGB wall washer takes up 6 DMX addresses, the former wall washer's address plus 6 is the address for the next one.

Each 0.9m RGB wall washer takes up 9 DMX addresses, the former wall washer's address plus 9 is the address for the next one.

Each 1.2m RGB wall washer takes up 12 DMX addresses, the former wall washer's address plus 12 is the address for the next one

.

3. If you want all connected wall washers to change colors together, you should set the same address for all the washers.

4. Please set the address from smaller to bigger.

5. The maximum address of RGB wall washer should be less than 510.

6. There should be only one main flood light as a master (the flood light works in main control mode, control box or control console).

7. When there are many wall washer connected together, the connections please refer to the connection diagram.

8. The connection cable between two controllers, or between console and signal amplifiers. It can't exceed 100m; The distance between the first signals amplifier or console and the last flood light can't exceed 100m.

Instruction for installation

1. The wire of power supply and signal of last wall washer of each loop should be used tail plug for waterproof

2. Please make sure there is no short circuit before turn on the power, otherwise the parts of the device would be burn out.

3. Around the lamp should fill with some gravel or sand when installation, it is better for the heat rink and drainage. And make sure there is no corrosive, inflammability and explosive material around.

Note: A. Make sure the power is be turned off while installation or dismounting.

B. Please replace with new lamp when the lamp body is defected.
