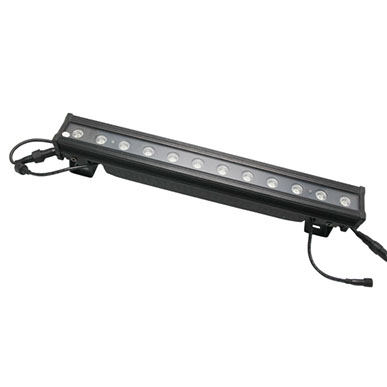

Slim DMX Wall Washer

Product Name

Slim DMX Wall Washer (single color and R/G/B

Product Information

1. We use high power 2W LED as the light source, R/G/B type can bring excellent light effects and brilliant colors.

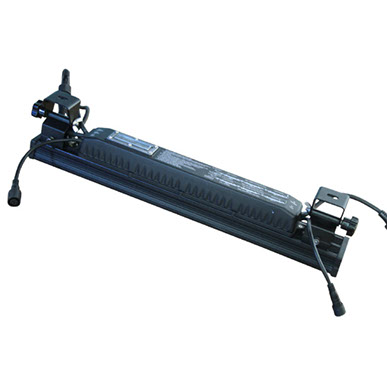

2. There are two parts for the wall washer, first part is light body and the other one includes power supply and controller box, which makes this wall washer different with other wall washers.

3. It has smaller weight and stable quality and it is easy for maintenance. Wall washers can be connected by 3-pin cable hand in hand, so very easy for installation.

4. There are 14 kinds of build-in programs which can be operated at the DMX window. This wall washer can also be controlled by outside DMX 512 controller or super DMX Console to achieve more different lighting effects.

Technique Parameters:

Connection Ports

One power supply input terminal, 3-pin male connector

One power supply output terminal, 3-pin female connector

One standard DMX signal input terminal, 3-pin male connector

One standard DMX signal input terminal, 3-pin female connector

One 4-wire and 3-loop signal input terminal, 4-pin female connector ( connected with body of light )

Function for Buttons of DMX Windown under wall washer.

R/G/B wall washer has 14 kinds of working mode, which can be operated by pressing the two buttons. Once is for increasing and the other is for decreasing.

Instruction for the numbers in the DMX window.

001-512, slave mode. Under this mode, the light is operated by mater controller. (DMX 512 controller, SD card DMX controller or DMX Super console can work as the master controller)

H-1~H-d: master mode. Once the light is under this mode, all the other lights connected will follow with this light.

Mode Instruction:

001~512: DMX Address

H-1: Static Red

H-2: Static Green

H-3: Static Blue

H-4: Static Yellow

H-5: Static Cyan

H-6: Static Purple

H-7: Static White

H-8: 7 colors jumping, red, green, blue, yellow, cyan, purple, white

H-9: 3 colors jumping, red, green, blue

H-A: 7 colors gradually changing, red, green, blue, yellow, cyan, purple, white

H-b: 3 colors gradually changing, red, green, blue,

H-C: 7 colors flashing, red, green, blue, yellow, cyan, purple, white

H-d: 3 colors gradually changing, red, green, blue

Outline Dimensional Drawing

" L" is the total length of item, 0.5m Slim wall washer: L=507mm, 1m Slim wall washer: L=993mm

The Connection Method

Method one:

Method two:

Data of different part No. as follow (In the case of non-extending signal wire and power wire that can bear max power)
