SMD 5050 Aluminum Light Bar 60LED 1m

Products Information

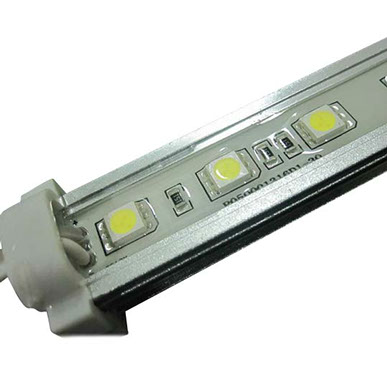

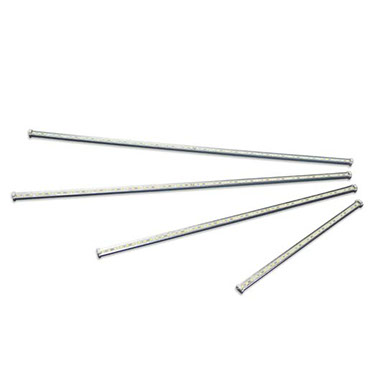

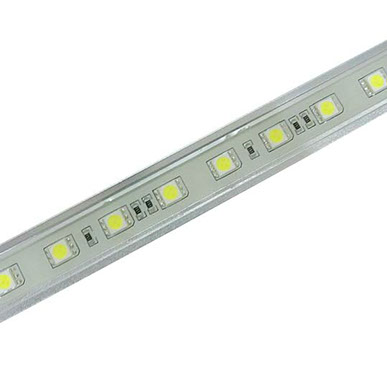

Waterproof SMD led aluminum light bar (60led/1m)



Production Features:


1. High brightness, low decay, wide viewing angle


2. Aluminum alloy shell, shockproof


3. Epoxy glue as the waterproof material, IP 65


4. Heat sink, nice appearance


5. Widely used for advertising decoration, interior decoration, local lighting, etc


Light source


1. LED type: SMD 5050


2. Colors available: red, green, blue, yellow, pure white (5500-6500K), warm white(2700-3200K), cool white(7000-9000K)


3. Viewing angle: 120


4. Lumens: (unit: lm)

5.  CCT (unit: K)

6.  LED quantity: 60pcs /1m


7.  LED lifespan: 30K-50K hours

Electric parameter:


1. Working voltage: DC 12V


2. Current: 1A


3. Power consumption: 12W, 1pc 12V 60W transformer can drive 4pcs 1m SMD 5050 light bar.


4. Drive way:  constant voltage



1. Lead: 75mm long, 20AWG gray and white wires, gray wire is for anode and white wire is for cathode.


2. Standard length for connection:  10m


3. Max connection length for connection: <=10pcs (10m)

Appearance parameter:


1. Aluminum alloy shell


2. Size: 1010×23×20.3mm

Working condition


1. working temperature: -30℃-45℃


2. storage temperature: -50℃-60℃


3. IP rating: IP65

Appearance dimenstion:  (unit: mm)

Connection diagram:
